• 3001 Series ROCKER SWITCH

    SPECIFICATION:

    RATING : 10A 125VAC, 6A 250VAC (UL,CUL)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 30mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min





    Inquiry Info. More Information

  • 3003 ROCKER SWITCH

    SPECIFICATION:

    RATING : 1A 250VAC, 3A 125VAC (UL,CUL)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    AMBIENT TEMPERATURE : 0 TO 55

    ELECTRICAL LIFE : 6,000 CYCLES

    Inquiry Info. More Information

  • 3013 ROCKER SWITCH

    SPECIFICATION:

    RATING : 15A 125VAC, 10A 250VAC

    CIRUIT : ON-OFF (SPST), ON-ON (SPDT)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min





    Inquiry Info. More Information

  • 3010 ROCKER SWITCH

    SPECIFICATION:

    RATING :

    15.1A 125VAC, 8A 250VAC (UL,CUL)

    1/2HP 125VAC, 1HP 250VAC (UL,CUL)

    10(4)A 250VAC ~ T85 (ENEC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    ELECTRICAL LIFE : 10,000 CYCLES

    Inquiry Info. More Information

  • 3076 Rocker Switch

    SPECIFICATION:

    RATING :

    6(4)A 250VAC ~ T85 (UL,CUL,ENEC)

    4/64A 250VAC ~ T85(UL,CUL,ENEC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    AMBIENT TEMPERATURE : 0 TO 85

    ELECTRICAL LIFE : 10,000 CYCLES

    Inquiry Info. More Information

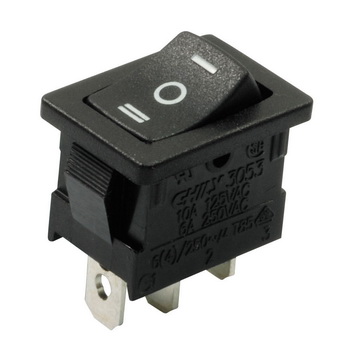

  • 3018/3053 ROCKER SWITCH

    SPECIFICATION:

    RATING :

    10A 125VAC, 6A 250VAC (UL,CUL)

    6(4)A 250VAC ~ T85 (ENEC,CQC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    AMBIENT TEMPERATURE : 0 TO 85

    ELECTRICAL LIFE : 10,000 CYCLES

    Inquiry Info. More Information

  • 3022 Rocker Switch

    SPECIFICATION:

    RATING :

    6A 125VAC, 4A 250VAC 1/10HP 125~250VAC (UL,CUL)

    4(1)A 250V~T85 (ENEC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    AMBIENT TEMPERATURE : 0 TO 85

    ELECTRICAL LIFE : 10000 CYCLES

    Inquiry Info. More information

  • 3024 Rocker Switch

    SPECIFICATION:

    RATING :

    16(8)A 250~T85, 8/128A 250V~T85 TV-8 250V (UL,CUL)

    16(8)A250V~T85, 8/128A 250V (ENEC,CQC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    AMBIENT TEMPERATURE : 0 TO 85

    ELECTRICAL LIFE : 25,000 CYCLES

    Inquiry Info. More Information

  • 3024B05 Rocker Switch

    SPECIFICATION:

    RATING :

    16(8)A 250~T85, 8/128A 250V~T85 TV-8 250V (UL,CUL)

    16(8)A250V~T85, 8/128A 250V (ENEC,CQC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    AMBIENT TEMPERATURE : 0 TO 85

    ELECTRICAL LIFE : 25,000 CYCLES

    Inquiry Info. More Information

  • 3025 Rocker Switch

    SPECIFICATION: (washable IP44)

    RATING :

    16A 125VAC, 10A 250VAC

    16(4)A 250V~T85, 8/128A 250V~T85

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    AMBIENT TEMPERATURE : 0 TO 85

    ELECTRICAL LIFE : 10000 CYCLES

    Inquiry Info. More Information

Total of 16 results
