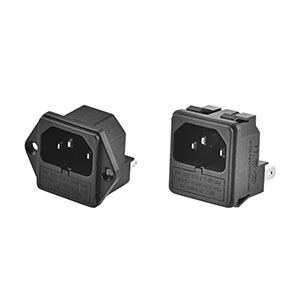

• 3528 SERIES(SNAP) SOCKET + FUSE HOLDER

    SPECIFICATION:

    IEC60320 / C14 / C18 INLET + FUSE HOLDER



    RATING :

    15A 125VAC (UL,CUL)

    10A 250VAC (ENEC,CCC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    FUSE HOLDER : MAX 10A / 2.5W 250VAC (ENEC)

    Inquiry Info. More Information

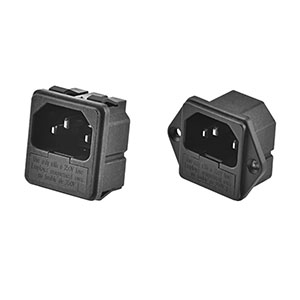

  • 3528 SERIES(SCREW) SOCKET + FUSE HOLDER

    SPECIFICATION:

    IEC60320 / C14 / C18 INLET + FUSE HOLDER



    RATING :

    15A 125VAC (UL,CUL)

    10A 250VAC (ENEC,CCC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    FUSE HOLDER : MAX 10A / 2.5W 250VAC (ENEC)

    Inquiry Info. More Information

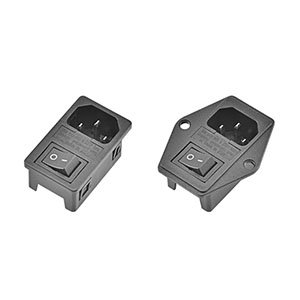

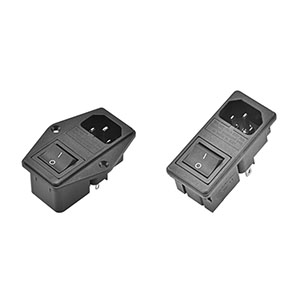

  • 3528 SERIES(SNAP) SOCKET + FUSE HOLDER + SWITCH

    SPECIFICATION:

    IEC60320 / C14 / C18 + FUSE HOLDER + ROCKER SWITCH



    SOCKET RATING :

    15A 125VAC (UL,CUL)

    10A 250VAC (ENEC,CCC)

    SWITCH RATING : Pls refer to the rocker switch 3026, 3022, 3010 series

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    FUSE HOLDER : MAX 10A / 2.5W 250VAC (ENEC)

    Inquiry Info. More Information

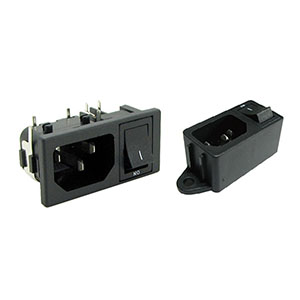

  • 3544 C14 INLET + SWITCH

    SPECIFICATION:

    IEC60320 / C14 / C18 + SWITCH



    SOCKET RATING :

    15A 125VAC (UL,CUL)

    10A 250VAC (ENEC,CCC)

    SWITCH RATING : Pls refer to the rocker switch 3024 or 3010 series

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    Inquiry Info. More Information

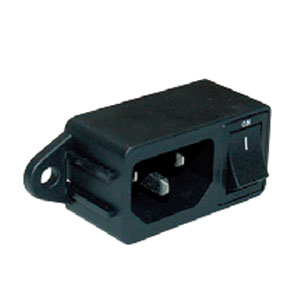

  • 3545 SERIES(SCREW) SOCKET + DOUBLE FUSE HOLDER + SWITCH

    SPECIFICATION:

    IEC60320 / C14 INLET + DOUBLE FUSE HOLDER + SWITCH



    SOCKET RATING :10A 250VAC (UL,CUL,VDE,CCC)

    SWITCH RATING : Pls refer to the rocker switch 3050, 3052 series

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    FUSE HOLDER RATING : MAX 10A / 2.5W 250VAC (ENEC)

    Inquiry Info. More Information

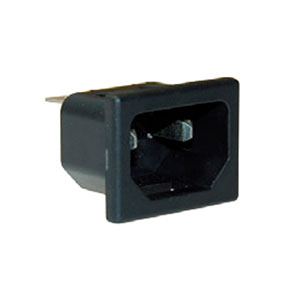

  • 3545 SERIES(SCREW) SOCKET + DOUBLE FUSE HOLDER

    SPECIFICATION:

    IEC60320 / C14 INLET + DOUBLE FUSE HOLDER



    SOCKET RATING : 10A 250VAC (UL,CUL,VDE,CCC)

    INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

    WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

    FUSE HOLDER RATING : MAX 10A / 2.5W 250VAC (ENEC)

    Inquiry Info. More Information

Total of 6 results
