ROCKER SWITCH
-
翹板開關

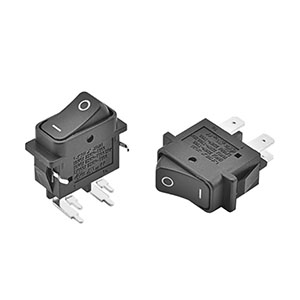

3026 Rocker Switch
SPECIFICATION:
RATING :
12(4)A 250V~T85 (UL,CUL,ENEC)
8/128A 250V~T85 (UL,CUL,ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 85℃
ELECTRICAL LIFE : 10000 CYCLES
-
蹺板開關

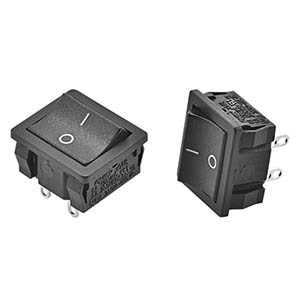

3048/3052 ROCKER SWITCH
SPECIFICATION:
RATING :
6A 125VAC, 6A 250VAC (UL,CUL)
6(4)A 250V~T85 (ENEC,CQC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 85℃
ELECTRICAL LIFE : 10000 CYCLES
-
蹺板開關

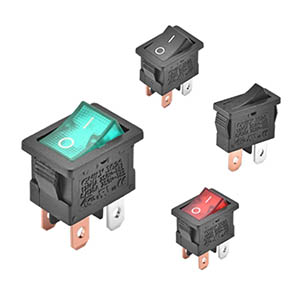

3050 Rocker Switche
SPECIFICATION:
RATING :
16A 125VAC, 10A 250VAC (UL,CUL)
1/3HP 125/250VAC T105 (UL,CUL)
16(4)A 250V~T85 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 85℃
ELECTRICAL LIFE : 10000 CYCLES
-
蹺板開關
306X ROCKER SWITCH
SPECIFICATION:
RATING :
16A 125VAC, 16A 250VAC (UL,CUL)
16(4)A 250V~T85 (ENEC,CQC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 85℃
ELECTRICAL LIFE : 10000 CYCLES
-
蹺板開關
3073 ROCKER SWITCH
SPECIFICATION:
RATING :
16A 125VAC 1/3HP, 16A 250VAC 1/2HP (UL, CUL)
16(6)A 250V ~ T125/55 (ENEC, CQC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 125℃
ELECTRICAL LIFE : 10000 CYCLES -
蹺板開關
3077 ROCKER SWITCH
SPECIFICATION:
RATING :
20(8)A 250V~T85 (UL,CUL,ENEC)
3/4HP 125/250VAC (UL,CUL)
10(6)A 250V~ 5E4 (UL,CUL,ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 55℃
ELECTRICAL LIFE : 10000 CYCLES
