AC INLET
-
3516 C14 INLET
SPECIFICATION:
IEC60320 / C14 / C18 INLET
RATING :
15A 125VAC (UL,CUL)
10A 250VAC (ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
3522 C14 INLET
SPECIFICATION:
IEC60320 / C14 / C18 INLET
RATING :
15A 125VAC (UL,CUL)
10A 250VAC (ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
3523 C14 INLET
SPECIFICATION:
IEC60320 / C14 / C18 INLET
RATING :
15A 125VAC (UL,CUL)
10A 250VAC (ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-

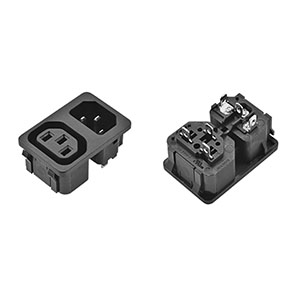

3526 C14+Sheet F Socket
SPECIFICATION:
IEC60320 / C14 + SHEET F SOCKET
RATING : 10A 250VAC (UL,CUL,ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
3527 C16 INLET
SPECIFICATION:
IEC60320 / C16 INLET
RATING :
15A 125VAC (UL,CUL)
10A 250VAC (ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
2pin插座
3532 C8 INLET
SPECIFICATION:
IEC60320 / C8 INLET
RATING : 2.5A 250VAC (UL,CUL,ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
米老鼠插座
3542 C6 INLET
SPECIFICATION:
IEC60320 / C6 INLET
RATING : 2.5A 250VAC (UL,CUL,ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
3541 C20 INLET
SPECIFICATION:
IEC60320 / C20 / C24 INLET
RATING :
20A 125/250VAC (UL,CUL)
16A 250VAC (ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
